Rear Speaker Installation:
To access the rear speakers, you must remove the rear deck.
Tools Used:
- Medium size short neck Philips (+) screw driver
- 1/2" ratchet
- Soldering Iron (optional)
Products Used:
|
|

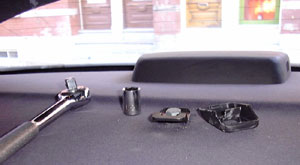

Remove the plastic cover on the baby seat retainer. It's a little tricky to remove, but patience
and persistance will pay off, you don't want to damage it. Use the 1/2" ratchet to remove the
baby seat retainer.
|
|
Lift the rear deck, watching for the clips.
|
|
|
Use the short neck screw driver to remove the speaker. Once again, Audi, why only two screws???
|
Remove the speaker and replace it with the new speaker set. Notice that the driver side rear
speaker looks different. It's equiped with a Nokia cell phone output interface, used only by
vehicles purchased with factory cell phone.
|
|
|
Use 12 gauge speaker wire to obtain good quality sound (important) with minimal
loss. Solder the quick connect terminals to the speaker wire to ensure a good connection. This
step can be disregarded if using stock speaker wires without the addition of an amplifier.
|
|
Reinstall the rear deck and baby seat retainer.
|
|
|
